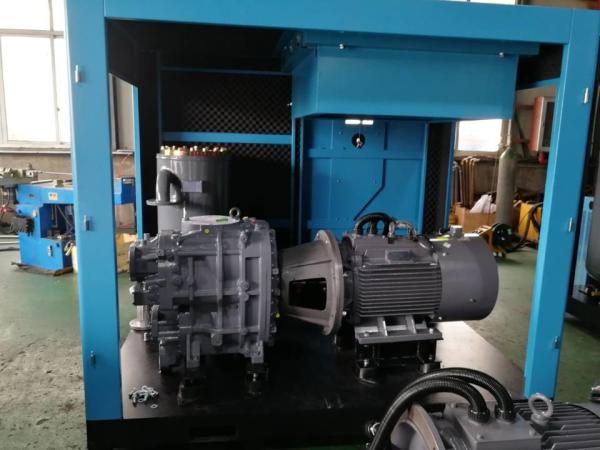

Silent Single Stage Air Compressor / Small Air Compressor Uses In Industry

    Buy cheap Silent Single Stage Air Compressor / Small Air Compressor Uses In Industry from wholesalers

    Buy cheap Silent Single Stage Air Compressor / Small Air Compressor Uses In Industry from wholesalers
    • Buy cheap Silent Single Stage Air Compressor / Small Air Compressor Uses In Industry from wholesalers

    Silent Single Stage Air Compressor / Small Air Compressor Uses In Industry

    Ask Lasest Price
    Brand Name : Wan Beardsley
    Model Number : WZS-50EVA
    Certification : ISO9001, CE
    Price : Negotiated
    Payment Terms : T/T, L/C
    Supply Ability : 500 sets per month
    Delivery Time : 1-15 workdays after deposit.
    • Product Details
    • Company Profile

    Silent Single Stage Air Compressor / Small Air Compressor Uses In Industry

    Silent Single Stage Air Compressor / Small Air Compressor Uses In Industry

    High quality of air end

    • The rotor adopts advanced high-efficiency molded lines, which ensures stability and high-efficiency;
    • It adopts two-stage independent compression, same pressure ratio, low speed design, thus enhancing more than 15% of air volume under the same power;
    • Guarantee of low compression ratio at every state, smaller host engine leakage, higher volume efficiency;
    • It adopts oil mist spray cooling at stage intervals, so as to make the entire compression process close to isothermal compression, thus improving the compression adiabatic efficiency;
    • The two segment rotors are directly driven by bevel wheel, so that each rotor obtain the best line speed, and the compression transfer efficiency is the highest;
    • The rotor and bearing have small load, the constant operation of host engine ensures long life;

    Model

    Power

    (KW)

    Pressure

    (Bar)

    Air flow

    (m³/min)

    Noise

    dB(A)

    Compressionstages

    Outlet diameter

    (Inch)

    Dimension

    (mm)

    Weight
    (kg)

    LWH
    WZS-15EVA1181.862±2Single1”13008601030380
    101.6
    WZS-20EVA1582.263±2Single1”13008601030480
    102.0
    WZS-30EVA2283.866±2Single1¼”13808501150620
    103.0
    WZS-40EVA3085.068±2Single1¾”13808501150680
    104.4
    WZS-50EVA3786.868±2Single1½”160010001370850
    105.4
    WZS-75EVA5589.769±2Single2”1700127015001350
    108.6
    WZS-100EVA75813.270±2Single2”2150130017001650
    1011.6
    WZS-125EVA90815.070±2Single2”2150110015001950
    1014.6
    WZS-150EVA110819.071±2SingleDN652550165018502600
    1017.0
    WZS-180EVA132823.072±2SingleDN652550165018502880
    1020.0
    WZS-200EVA160826.575±2SingleDN802950180018503200
    1022.5


    Technical service support throughout the year of Wan Beardsley

    We provide regular door-to-door field service and promise to give maintenance service on the site within 24h. We provide customers with all-round air compressor diagnosis and eliminate its fault in sprout so as to ensure continuous and complete production line and avoid expensive fault loss.
    With absolutely lower maintenance cost and on the condition that abundant spare parts are guaranteed, signed clients will obtain spare parts with 10% preferential price at least and enjoy five-year ’’heart warranty" plan.
    After expiration of one-year guarantee period of standard screw machine, guarantee of compressor units will be extended for 4 years, in the meantime, we will conduct filing management of individual machines of all clients which sign 5-year "relieving" contracts with us and conduct regular remind of maintenance service.

    Our service attitude

    Listen patiently to internal requirements of customers, carefully diagnose all kinds of faults and diligently handle all problems for clients.
    Satisfy customer demand with professional enthusiasm, professional skills and dedicated attitude.
