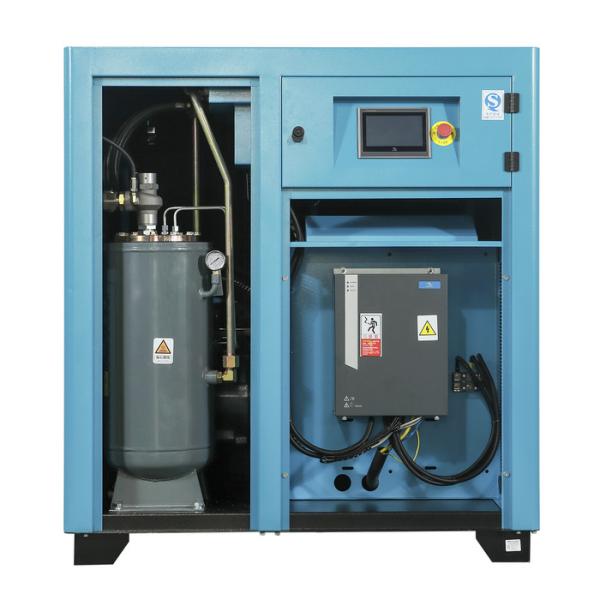

Oil Injected Single Stage Air Compressor , Powerful Stationary Air Compressor

PRODUCT DETAILS

Leading constant pressure control

AVF permanent magnet variable frequency screw compressors can sustain the air supply at the pressure of 0.1 bar in any loading conditions. In case of larger demands for air supply, the compressor can increase its rotation speed without changing the pressure to guarantee the air volume. In case of lower demands for air supply, the compressor can reduce its rotation speed without changing the pressure to meet such demands. In case of no demands for air supply, the compressor will switch to sleep mode to save energy. When actual pressure achieves the wakening standard, the compressor will immediately start up with rapid response of frequency converters even in sleep mode.

High-performance vector frequency converter

• Standard equipment with radio-frequency reactor which effectively reduces magnetic field interference outside high-frequency machine generated by frequency converter;
• Reliably reduces peak current when it is started, realizes stable starting;
• Saves cost of electrical power units;equipped with standard dust screen, circuit board is processed with surface coating, so antifouling, anti-dust and damp-proof effects are realized;
• equipped with standard dust screen, circuit board is processed with surface coating, so antifouling, anti-dust and damp-proof effects are realized;
• Special heat dissipation design prevents tripping under summer high temperature;
• Standard protocol of CAN with wire road standard of hardware and strong noise resistance;
• Rapidly track change of pressure, control pressure fluctuation within ±0.01Mpa, optimal power is used to accurately provide necessary air amount;
• Advanced integrated draught fan, and motor uses double-vector variable-frequency control technology.

High efficient centrifugal fan-cooling control system of double frequency (optional package)

• centrifugal fan-cooling permanent magnet motors adopt variable frequency control technology. They can save about 50% of the energy. Rotation speed of the cooling fan can be adjusted according to gas emission temperature, so as to reduce power consumption. Stable temperature of the overall system can improve durability of parts. In addition, variable frequency cooling fan can lower the noise.
• Centrifugal cooling fans are characterized by high efficiency, low noise, balanced pressure curve and other outstanding performances

Steady Pressure

It tracks system gas volume changes automatically, and adjusts the revolving speed of compressor accurately with the use of PID (proportional, differential, integral), to keep the system pressure stable.

Start without stamping

• The variable frequency starting method reduces the impact of the start of the compressor on the power grid and mechanical parts greatly, thus extending the life of the machine.
• Eliminate invalid transitional period from full-load power to no-load power
• Avoid excessive no-load power consumption
• Maintain the net pressure section
• Reduce the overall average operating pressure
• System pressure is low, making the system leak declined to a minimum
• It accelerates with the use of soft-start motor gradually, to improve flexibility, thus avoiding the surge

Similarly, for two models with above rated power 37kw, when load rate is only 605, input power of power-frequency model under ordinary air inflow throttling control is 39.2kw_; while shaft power of permanent magnetic power-frequency motor is 23.6kw with electricity saving ratio being 37.5%. If we calculate according to 40,000 operating hours per year, annual electric charge of ordinary asynchronous power-frequency model is RMB 107,200, however, annual electric charge of permanent magnetic synchronous servo model is RMB 65,800, saving RMB 41,400 in each year.

Difference of servo permanent magnetic variable-frequency technology and non-variable frequency technology in energy conservation

Non variable-frequency unit regulates demand for air discharqe with modulatinq capacity valve, while servo permanent magnetic variable-frequency unit regulates demand for air discharge in way of motor frequency conversion, and comparison of energy conservation between the two is as following:

Technical service support throughout the year of Wan Beardsley

We provide regular door-to-door field service and promise to give maintenance service on the site within 24h. We provide customers with all-round air compressor diagnosis and eliminate its fault in sprout so as to ensure continuous and complete production line and avoid expensive fault loss.

With absolutely lower maintenance cost and on the condition that abundant spare parts are guaranteed, signed clients will obtain spare parts with 10% preferential price at least and enjoy five-year ’’heart warranty" plan.

After expiration of one-year guarantee period of standard screw machine, guarantee of compressor units will be extended for 4 years, in the meantime, we will conduct filing management of individual machines of all clients which sign 5-year "relieving" contracts with us and conduct regular remind of maintenance service.

Our service attitude

Listen patiently to internal requirements of customers, carefully diagnose all kinds of faults and diligently handle all problems for clients.

Satisfy customer demand with professional enthusiasm, professional skills and dedicated attitude.

    Wan Beardsley Compression Machine (Shanghai) Co., Ltd is a medium and large-sized enterprise specialized in research, development and production of air compressors. By virtue of fruitful technological strength and advanced and complete production and testing equipments, this company pursues enterprise tenet “Achieve high quality with conscientiousness and create a centennial brand with quality”, strictly performs the commitment “be the most energy-efficient screw air compressor”, continuously seeks for sustainable improvement of products, process and system, and increasingly improves product properties, quality and reliability so as to make out R & D and manufacturing capacity step onto a new stair in manufacturing technology of air compressor. Our product quality has reached internally first-class level, and some products have been exported to and supported Southeast Asia and European and American markets.
